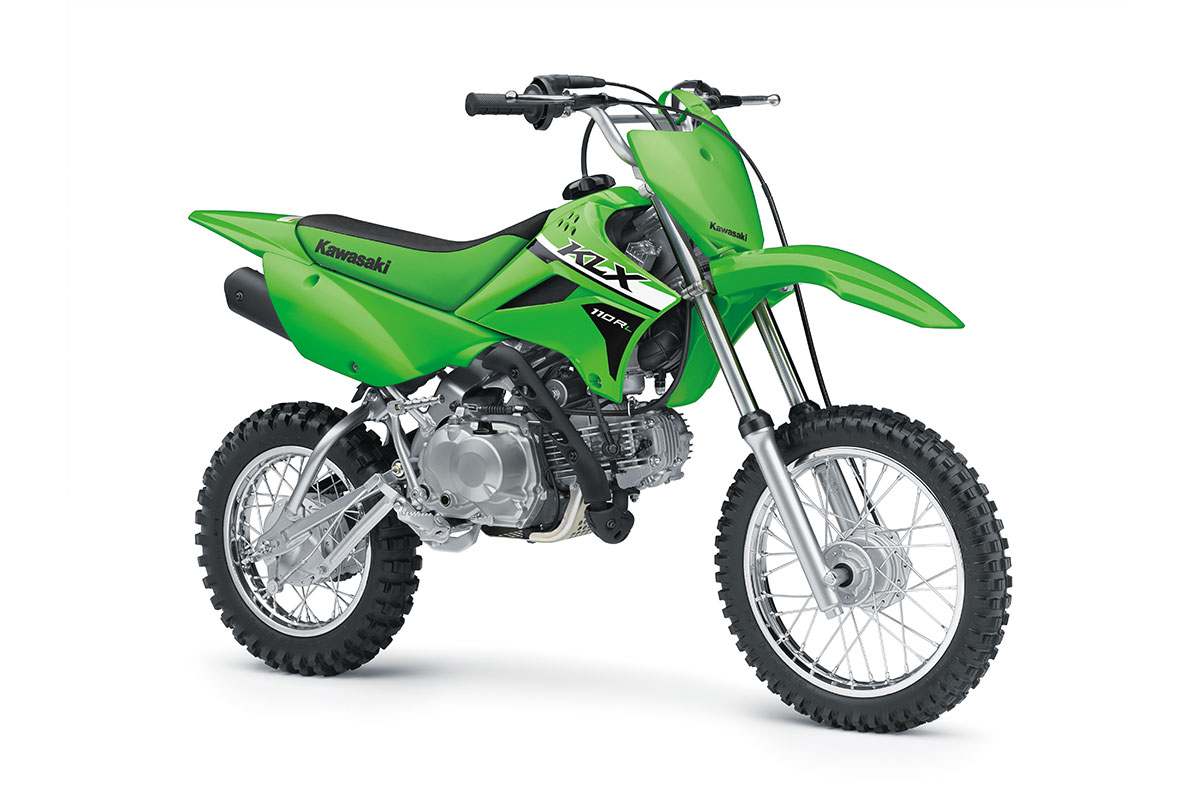

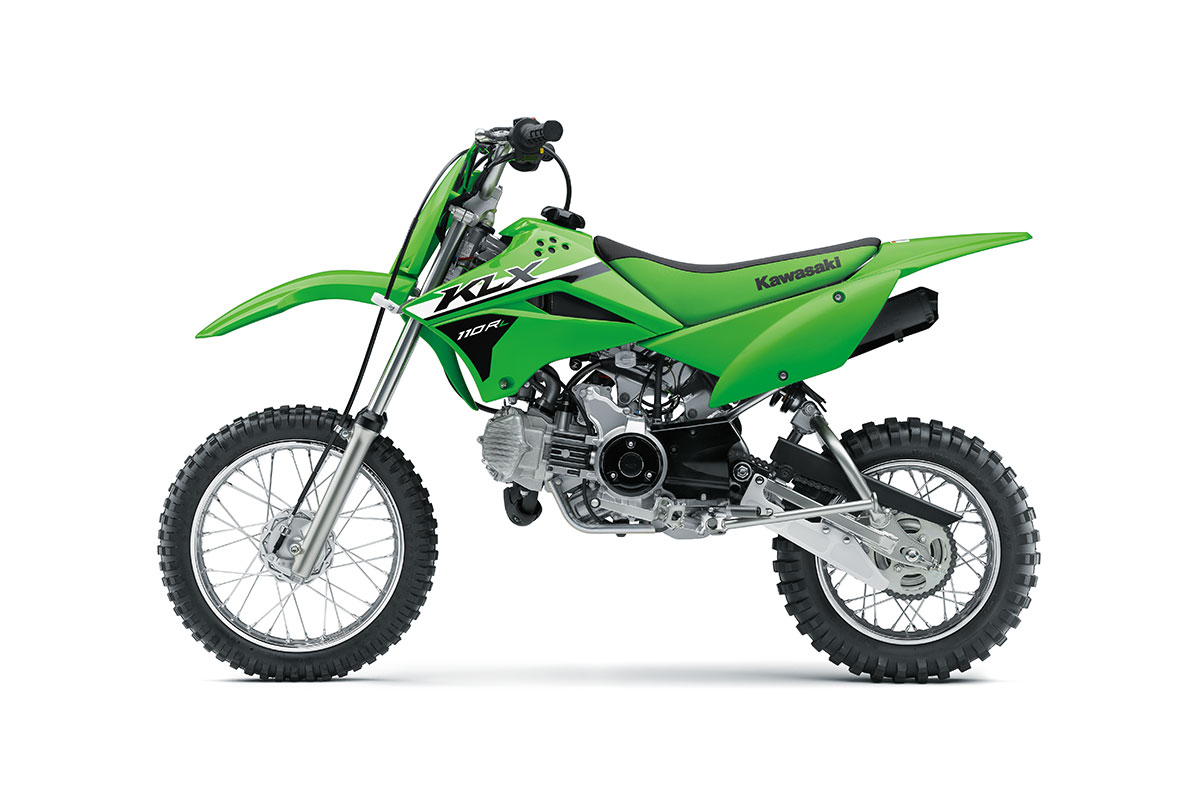

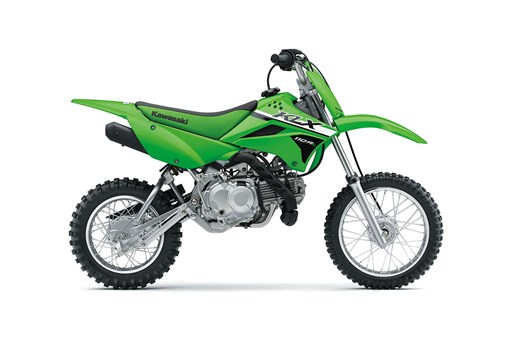

KLX110R L

Heighten The Enjoyment

Enter a Postcode to get a ride away price.

FUN TIMES KLX110R BONUS +
$600 KLX110 SAVING on 2024 and prior models
START SAVING TODAY
Lime Green

Lime Green

Taller seat and higher
ground clearance
Four-speed transmission with
manual clutch
Maximum Power 5.4 kW {7.3 PS} / 7,500 rpm
Maximum Torque 8.0 Nm {0.82 kgfm} / 4,000 rpm
Engine 4-stroke Single
Displacement 112 cc
Bore x Stroke 53.0 x 50.6 mm
Compression Ratio 9.5:1
Valve System SOHC, 2 valves
Fuel System Carburettor: Keihin PB18
Ignition Digital DC-CDI
Starting Electric & kick
Cooling Air-cooled
Lubrication Forced lubrication, wet sump
Transmission 4-speed, return
Primary Reduction Ratio 3.409 (75/22)
Gear Ratio: 1st 3.000 (36/12)
Gear Ratio: 2nd 1.938 (31/16)
Gear Ratio: 3rd 1.350 (27/20)
Gear Ratio: 4th 1.087 (25/23)
Final Reduction Ratio 2.923 (38/13)
Clutch Wet multi-disc, manual
Final Drive Chain
Frame Backbone, steel
Front Suspension ø30 mm telescopic fork
Rear Suspension Single shock
Front Wheel Travel 140 mm
Rear Wheel Travel 132 mm
Rake 24.2°
Trail 47 mm
Steering Angle (L/R) 45° / 45°
Front Tyre 2.50-14 4PR
Rear Tyre 3.00-12 4PR
Front Brake/s Drum (ø90 mm)
Rear Brake Drum (ø110 mm)
Dimensions (LxWxH) 1,560 x 650 x 990 mm
Wheelbase 1,075 mm
Road Clearance 265 mm
Seat Height 730 mm
Curb Weight* 76 kg
Fuel Capacity 3.6 litres
Model Code KLX110DRFNN

*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.

Specifications subject to change.
