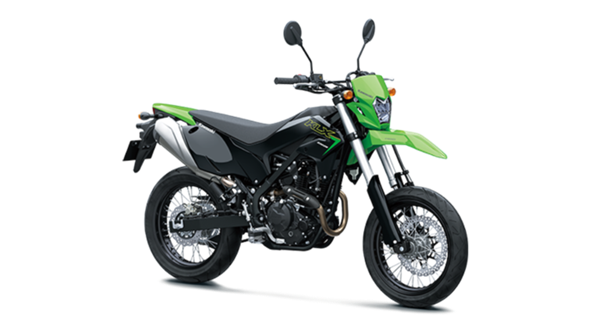

KLX230SM

LIGHTWEIGHT SUPERMOTO FOR NIMBLE STREET RIDING

Enter a Postcode to get a ride away price.

KLX230SM SUPER SAVINGS
$1,750 retail saving
START SAVING TODAY
360 Vehicle View
360
Select a Color

Select a View
Supermoto-tuned
long-travel suspension
Gold alumite
rims

Click on a technology to learn more.

Chassis Management Technology
Maximum Power 14.0 kW {19 PS} / 7,600 rpm
Maximum Torque 19.8 Nm {2.0 kgfm} / 6,100 rpm
Engine 4-stroke Single
Displacement 233 cc
Bore x Stroke 67.0 x 66.0 mm
Compression Ratio 9.4:1
Valve System SOHC, 2 valves
Fuel System Fuel injection: ø32 mm x 1
Ignition Digital
Starting Electric
Cooling Air-cooled
Lubrication Forced lubrication, wet sump
Transmission 6-speed, return
Primary Reduction Ratio 2.871 (89/31)
Gear Ratio: 1st 3.000 (39/13)
Gear Ratio: 2nd 2.067 (31/15)
Gear Ratio: 3rd 1.556 (28/18)
Gear Ratio: 4th 1.261 (29/23)
Gear Ratio: 5th 1.040 (26/25)
Gear Ratio: 6th 0.852 (23/27)
Final Reduction Ratio 3.071 (43/14)
Clutch Wet multi-disc, manual
Final Drive Chain
Frame Perimeter, high-tensile steel
Front Suspension ø37 mm inverted fork
Rear Suspension New Uni Trak with adjustable spring preload
Front Wheel Travel 204 mm
Rear Wheel Travel 168 mm
Rake 26.5°
Trail 86 mm
Steering Angle (L/R) 45° / 45°
Front Tyre 110/70-17M/C 54P
Rear Tyre 120/70-17M/C 58P
Front Brake/s ø300 mm semi-floating petal disc
Front Caliper/s Twin-piston
Rear Brake ø220 mm petal disc
Rear Caliper Single-piston
Dimensions (LxWxH) 2,050 x 835 x 1,120 mm
Wheelbase 1,375 mm
Road Clearance 230 mm
Seat Height 845 mm
Curb Weight* 135 kg
Fuel Capacity 7.5 litres
Model Code KLX230RPFAN

*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.

Specifications subject to change.
