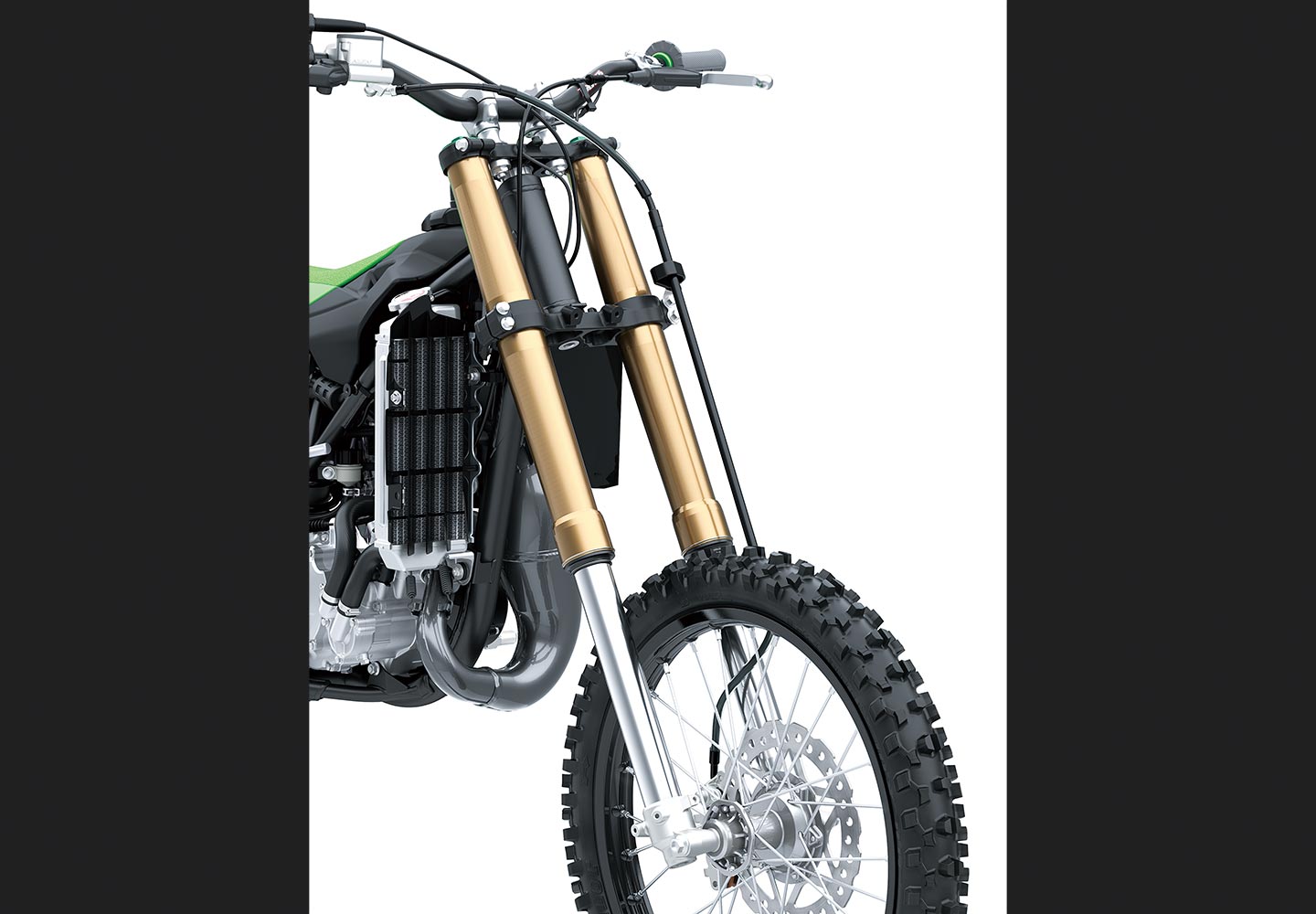

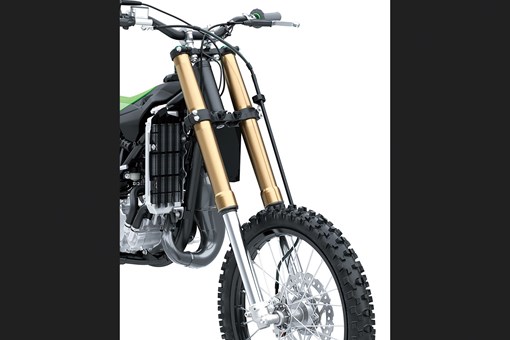

KYB ø43 mm
inverted front fork

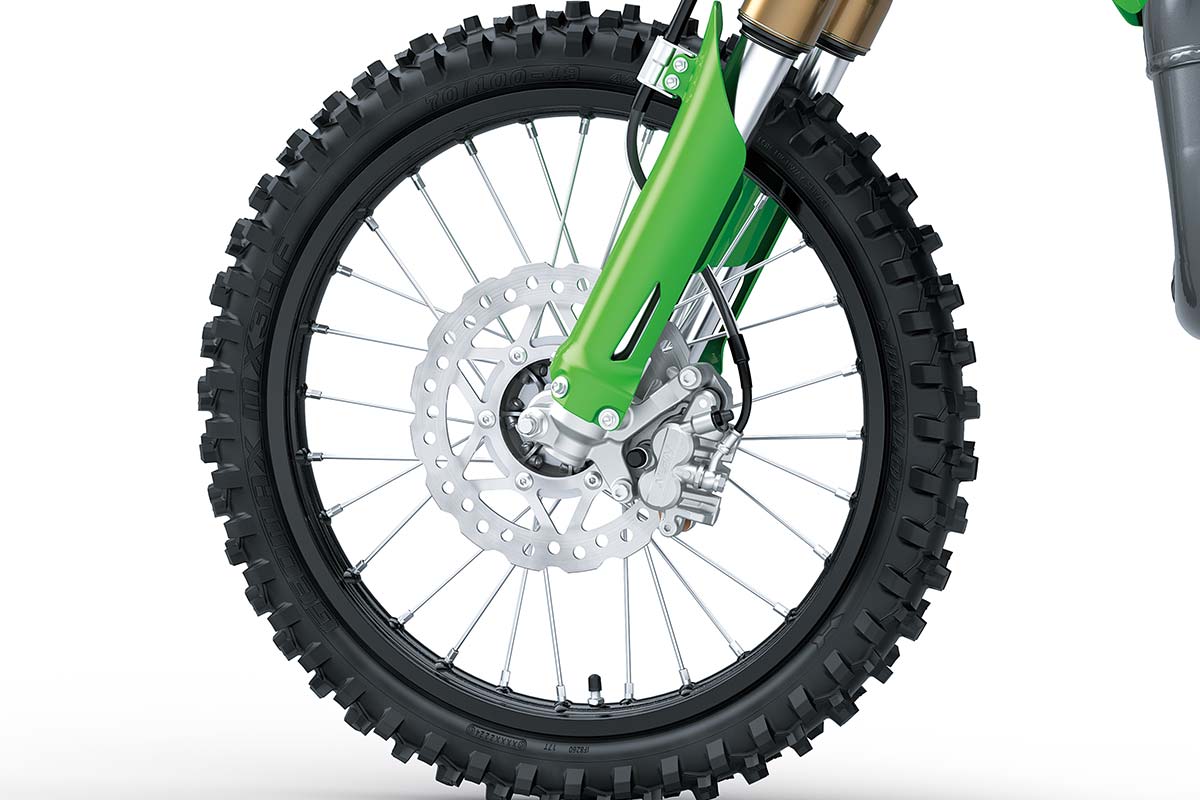

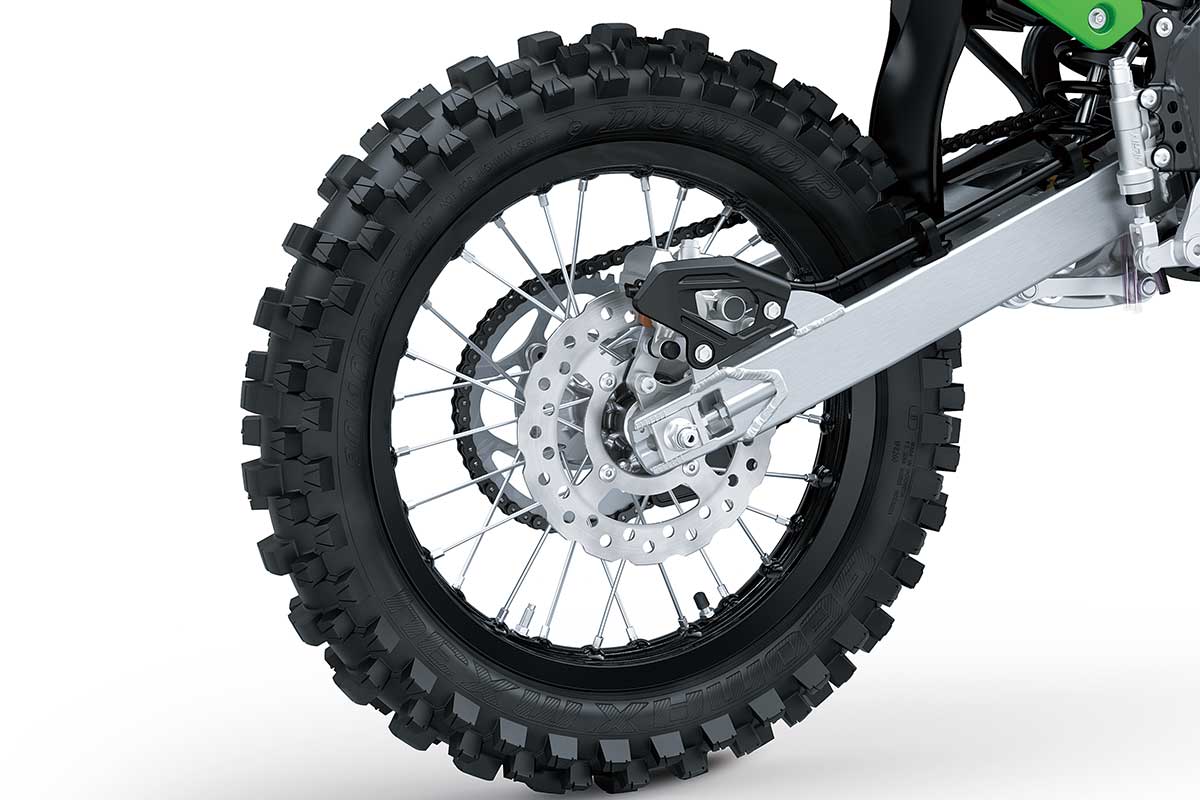

Large ø240/ø220 mm
disc brakes
Click on a technology to learn more.
| Chassis Management Technology |

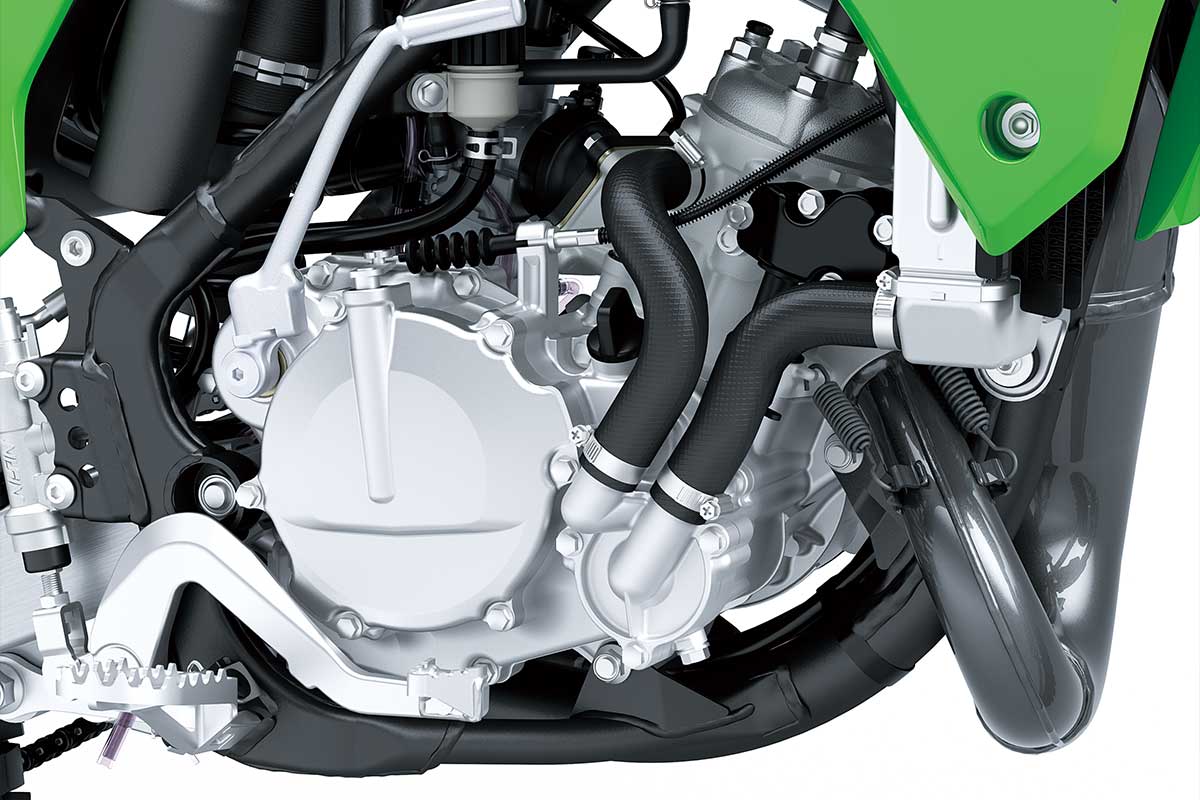

| Engine | 2-stroke Single with KIPS |
| Displacement | 112 cc |
| Bore x Stroke | 52.5 x 51.6 mm |
| Compression Ratio | 9.9:1 (low speed), 8.6:1 (high speed) |
| Induction | Piston reed valve |
| Fuel System | Carburettor: Keihin PWK28 |
| Ignition | Digital-CDI |
| Starting | Primary kick |
| Cooling | Liquid-cooled |
| Lubrication | Pre-mix (32:1) |
| Transmission | 6-speed, return |
| Primary Reduction Ratio | 3.400 (68/20) |
| Gear Ratio: 1st | 2.538 (33/13) |
| Gear Ratio: 2nd | 1.875 (30/16) |
| Gear Ratio: 3rd | 1.500 (27/18) |
| Gear Ratio: 4th | 1.250 (25/20) |
| Gear Ratio: 5th | 1.090 (24/22) |
| Gear Ratio: 6th | 0.956 (22/23) |
| Final Reduction Ratio | 3.923 (51/13) |
| Clutch | Wet multi-disc, manual |
| Final Drive | Chain |
| Frame | Perimeter, high-tensile steel |
| Front Suspension | ø43 mm inverted fork with adjustable compression and rebound damping |

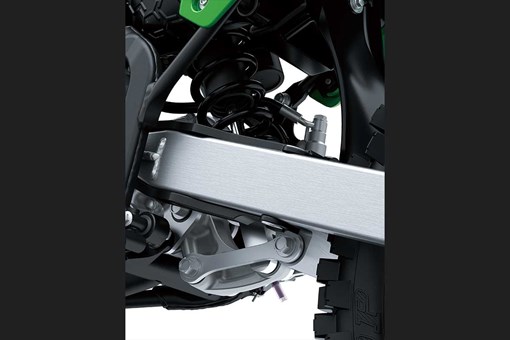

| Rear Suspension | Uni Trak, single shock with adjustable dual-range (high/low-speed) compression damping, adjustable rebound damping and adjustable spring preload |

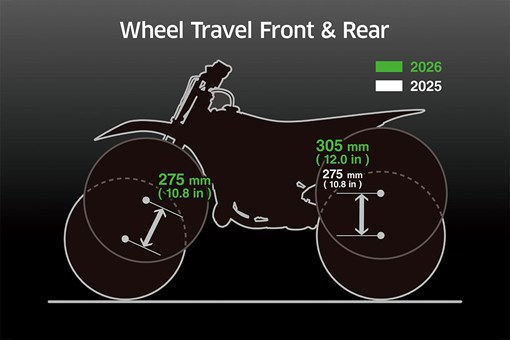

| Front Wheel Travel | 275 mm |
| Rear Wheel Travel | 305 mm |
| Rake | 29.2° |
| Trail | 117 mm |
| Steering Angle (L/R) | 39° / 39° |
| Front Tyre | 70/100-19 42M |
| Rear Tyre | 90/100-16 51M |
| Front Brake/s | ø240 mm petal disc |
| Front Caliper/s | Dual-piston |
| Rear Brake | ø220 mm petal disc |
| Rear Caliper | Single-piston |
| Dimensions (LxWxH) | 1,935 x 800 x 1,165 mm |
| Wheelbase | 1,310 mm |
| Road Clearance | 330 mm |
| Seat Height | 865 mm |
| Curb Weight* | 78.4 kg |
| Weight without Fuel | 74.8 kg |
| Fuel Capacity | 5.0 litres |
| Model Code | KX112BTFNN |
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.
Specifications subject to change.
